K8S部署akile monitor

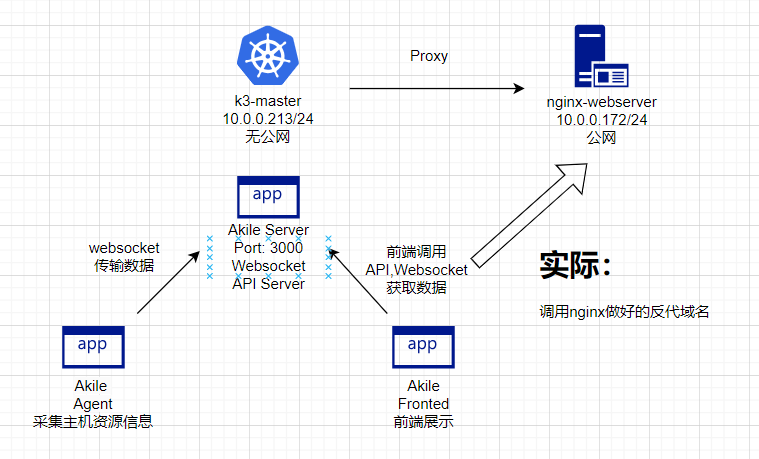

Akile Monitor 服务部署在K8S上，通过NodePort方式暴露API server，Websocket 内部3000端口 -> 外部端口30010 ，前端Caddy 内部80端口 -> 外部端口 30011
Nginx 反代 30010 ，30011 ，通过域名的方式调用。

一、拉取github上的源码

git clone https://github.com/akile-network/akile_monitor.git

二、制作Docker镜像

docker build --target server --tag akile_server:v1 .
docker build --target fe --tag akile_fronted:v1 .
docker build --target client --tag akile_agent:v1 .

三、编写相关yaml文件

1、Namespace

apiVersion: v1
kind: Namespace
metadata:
  name: akile-monitor

2、ConfigMap

apiVersion: v1
kind: ConfigMap
metadata:
  name: akile-monitor-config
  namespace: akile-monitor
  labels:
    app: akile-monitor

data:
  TZ: "Asia/Shanghai"
  AUTH_SECRET: "crazy123."
  LISTEN: ":3000"
  ENABLE_TG: "false"
  TG_TOKEN: "your_telegram_bot_token"
  HOOK_URI: "/hook"
  UPDATE_URI: "/monitor"
  WEB_URI: "/ws"
  HOOK_TOKEN: "hook_token"
  TG_CHAT_ID: "0"
  SOCKET: "wss://tz.xxxx.xyz/ws"
  # 因为我用了nginx作反代，且使用了tls，这里需要用到域名去填写，
  # 如用ip,或http, 请使用 ws://xxx.xxx.xxx.xxx/ws
  APIURL: "https://tz.xxxx.xyz"
  # 如上，普通ip，或http,请使用 http://xxx.xxx.xxx.xxx:3000
  # 此处用了nginx反代了3000端口的api

3、Deployment - Server

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: akile-monitor-server
  namespace: akile-monitor
  labels:
    app: akile-monitor-server
spec:
  replicas: 1
  selector:
    matchLabels:
      app: akile-monitor-server
  template:
    metadata:
      labels:
        app: akile-monitor-server
    spec:
      containers:
        - name: akile-monitor-server
          image: docker.io/library/akile_server:v1
          ports:
            - containerPort: 3000
          env:
            - name: TZ
              value: "Asia/Shanghai"
          envFrom:
            - configMapRef:
                name: akile-monitor-config
          volumeMounts:
            - name: db-storage
              mountPath: /app/ak_monitor.db
            - name: timezone
              mountPath: /etc/localtime
      volumes:
        - name: db-storage
          hostPath:
            path: /opt/akile_monitor/k8s/data/ak_monitor.db
# 该db文件，需要提前建/opt/akile_monitor/k8s/data/ak_monitor.db
        - name: timezone
          hostPath:
            path: /etc/localtime

4、Service - Server

---
apiVersion: v1
kind: Service
metadata:
  name: akile-monitor-server-service
  namespace: akile-monitor
spec:
  selector:
    app: akile-monitor-server
  ports:
    - protocol: TCP
      port: 3000
      targetPort: 3000
      nodePort: 30010
# 采用NodePort的目的是因为我的nginx在另外一个主机上，两台主机通过内网IP互通。
  type: NodePort

5、Deployment - Fronted

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: akile-monitor-fe
  namespace: akile-monitor
  labels:
    app: akile-monitor-fe
spec:
  replicas: 1
  selector:
    matchLabels:
      app: akile-monitor-fe
  template:
    metadata:
      labels:
        app: akile-monitor-fe
    spec:
      containers:
        - name: akile-monitor-fe
          image: docker.io/library/akile_fronted:v1
          ports:
            - containerPort: 80
          envFrom:
            - configMapRef:
                name: akile-monitor-config

6、Service - Fronted

---
apiVersion: v1
kind: Service
metadata:
  name: akile-monitor-fe-service
  namespace: akile-monitor
spec:
  selector:
    app: akile-monitor-fe
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
    - nodePort: 30011
  type: NodePort

四、nginx配置文件

upstream akile-fronted-80 {
  server 10.0.0.213:30011;
  keepalive 512;
}

upstream akile-ws-3000 {
  server 10.0.0.213:30010;
  keepalive 512;
}

server {
        listen 443 ssl;
        http2 on;
        server_name tz.xxxxx.xyz;  #你的域名

        ssl_certificate       /etc/nginx/cert/xxxxx.xyz/fullchain.pem;  #证书位置
        ssl_certificate_key   /etc/nginx/cert/xxxxx.xyz/privkey.pem; #私钥位置

        ssl_session_timeout 1d;
        ssl_session_cache shared:MozSSL:10m;
        ssl_session_tickets off;
        ssl_protocols    TLSv1.2 TLSv1.3;
        ssl_prefer_server_ciphers off;

        access_log  /var/log/nginx/akile-access.log  main;
        error_log  /var/log/nginx/akile-error.log;

# 反代前端静态资源
location / {
        proxy_set_header Host $host;
        proxy_set_header Origin https://$host;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_read_timeout 3600s;
        proxy_send_timeout 3600s;
        proxy_pass http://akile-fronted-80;
}
# 反代 api server的 info 和 delete路径
location ~ ^/(info|delete)$ {
        proxy_pass http://akile-ws-3000;
}
# 反代websocket的 ws和monitor路径
location ~ ^/(ws|monitor)$  {
    proxy_pass http://akile-ws-3000;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "Upgrade";
    proxy_set_header Host $http_host;
}

}

五、Deployment - Agent

apiVersion: apps/v1
kind: Deployment
metadata:
  name: akile-monitor-client
  namespace: akile-monitor
  labels:
    app: akile-monitor-client
spec:
  replicas: 1
  selector:
    matchLabels:
      app: akile-monitor-client
  template:
    metadata:
      labels:
        app: akile-monitor-client
    spec:
      dnsPolicy: ClusterFirstWithHostNet
      containers:
        - name: akile-monitor-client
          image: docker.io/library/akile_agent:v1
          env:
            - name: TZ
              value: "Asia/Shanghai"
            - name: AUTH_SECRET
              value: "crazy123"
            - name: URL
              value: "ws://akile-monitor-server-service:3000/monitor"
            - name: NET_NAME
              value: "enp0s6"
            - name: NAME
              value: "SG-Oracle-No2"
          volumeMounts:
            - name: dev
              mountPath: /host/dev
      volumes:
        - name: dev
          hostPath:
            path: /dev
      hostNetwork: true

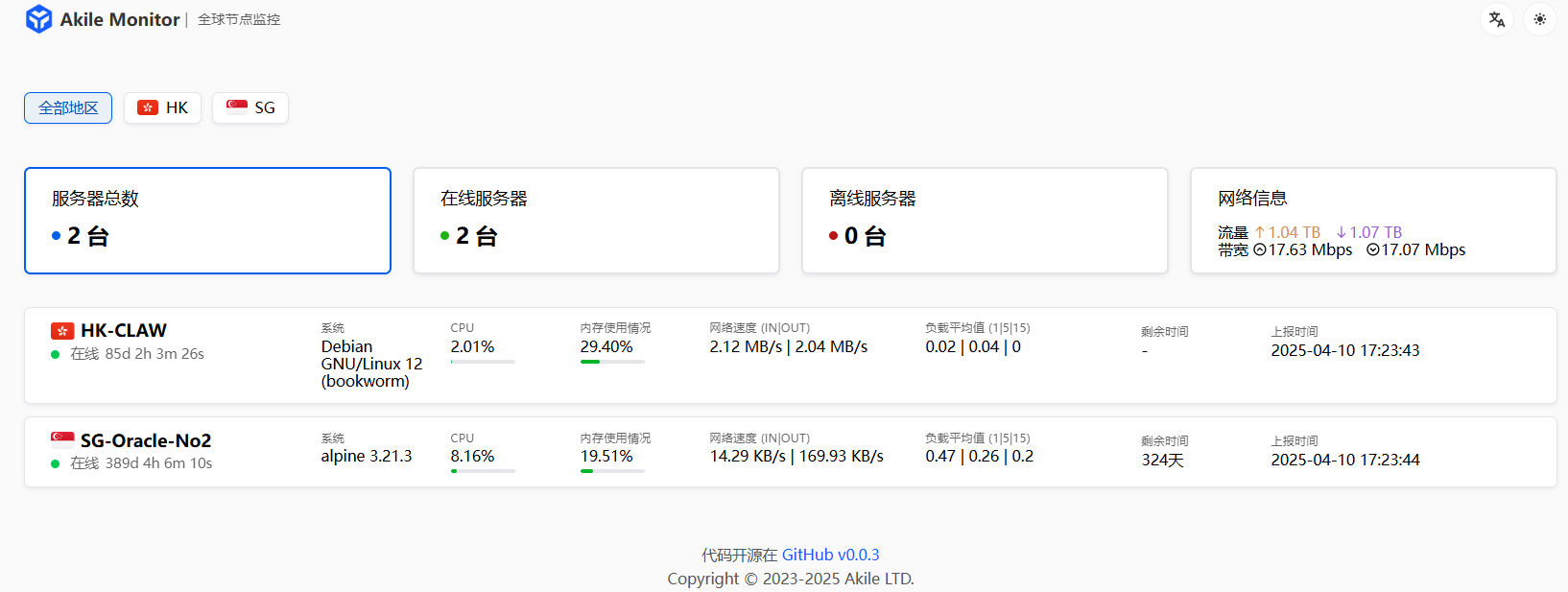

六、成果截图
